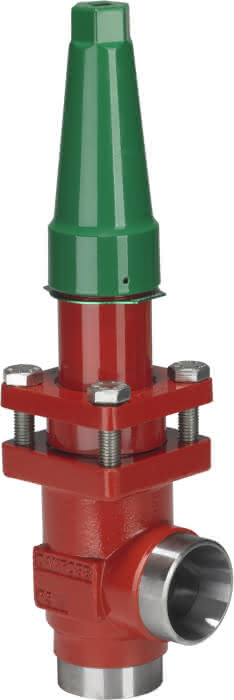

Vergelijkbaar met illustratieDanfoss Rückschlag- und Absperrventil SCA-X 25
Artikelnummer: 6094612Leverancierscode: 148B5408
Artikel eenheid conversie: 1 Stuk(s)Matchcode: SCAX25DDouanetariefnummer: 84813091Verpakkingsgrote : 238x395x95Gewicht inclusief verpakking: 4,060 kg
Check and stop valve, SCA-X 25, Direction: Angleway, Connection standard: EN 10220
Log in om de prijs te zien
Beschrijving
Check and stop valve, SCA-X 25, Direction: Angleway, Connection standard: EN 10220
Specificaties
Aansluitingstype
Anschweißend (EN 10220)
Antaal
1
Inlaat
25 Zoll
KV-waarde
24,000 m³/h
Koudemiddel
R134a, R170, R22, R290, R401a, R402a, R404a, R407a, R407b, R407c, R407f, R409a, R410a, R421a, R502, R507a, R600, R600a, R717, R744
Materiaal
Steel
Maximaal Bedrijfsdruk
52,0 bar
Omgevingstemperatuur
150 °C
Type
SVLFlexline
Uitlaat
1 Zoll
gewicht zonder verpakking
3,45 kg
Daten und Abbildungen ohne Gewähr
